Sinovo High Operating Efficiency Crawler Hydraulic Rotary Drilling Rig CFA Pile Driver For Excavator

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: TR180W/220W/250W
Minimum Order Quantity: 1 unit
Packaging Details: International Export Package
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Detail Information
Application:: CFA Pile, Bored Pile, Foundation Project Undercarriage:: Original CAT Base Or Doosan Base
Warranty: 12month Or One Year Drill Accessories: Kelly Bar, CFA Tools, DW Casing
Hydraulic System: Rexroth And CAT Core Components: PLC, Engine,Motor, Reducer, Pump
Highlight:

cfa machine

,

drilling equipment


Product Description

TR250W rotardy drilling rig mounted on original CAT base with pull down winch system;



CFA drilling equipment is suitable for oil drilling equipment, well drilling equipment, rock drilling equipment, directional drilling equipment, and core drilling equipment.

Our CFA drilling equipment based on continuous flight auger drilling technique is mainly used in construction to create concrete piles. It can construct a continuous wall of reinforced concrete that protects workers during excavation.



CFA piles combine the advantages of the driven piles and the bored piles, which are versatile and require no removal of soil. This drilling method enables the drilling equipment to excavate a wide variety of soils, dry or water-logged, loose or cohesive, and also to penetrate through low capacity, soft rock formations like tuff, loamy clays, limestone and sandstone etc.



The maximum diameter of piling reaches 1.2 m and max. depth achieves 23.5m, thereby helping overcome problems formerly connected to projects and execution of the pilings.



 TR250W CFA Equipment Technical Parameters



Euro Standards

U.S. Standards

Max drilling depth

23.5m

77 ft

Max drilling diameter

1200mm

47in

Engine model

CAT C-9

CAT C-9

Rated power

261KW

350HP

Max torque for CFA

120kN.m

88476lb-ft

Rotating speed

6~27rpm

6~27rpm

Max crowd force of winch

280kN

62944lbf

Max extraction force of winch

280kN

62944lbf

Stroke

14500mm

571in

Max pulling force of main winch (the first layer)

240kN

53952lbf

Max pulling speed of main winch

63m/min

207ft/min

Wire line of main winch

Φ32mm

Φ1.3in

Undercarriage

CAT 330D

CAT 330D

Track shoe width

800mm

32in

Width of crawler

3000-4300mm

118-170in

Whole machine weight

70T

70T



Our advantage



1. Manufactuer of the most complete series of small and medium rotary drilling rig.



2. Series drilling rigs have passed CE& ISO9001. GOST certification.



3. 30 people R&D team with an average of 15 years rich experience.



4. Oversea after-sales sevice and bulid up branchs in Singapore. Middle east. Africa and Euopre.



5. Provide customized services





Q: Are you a trading company or a manufacturer?



A: We are a professional manufacturer, and our factory mainly produces series hydraulic rotary rig, hydraulic pile breaker, exploration equipment, core drilling rig and related piling equipment etc.



Q: What kind of product certification do you have?

A: Our series products have passed ISO9001, Gost and CE certifications.

We strictly perform quality inspection process before shipment and supply the best quality machines to our customers.



Q: Do you have after sales service?

A: Yes, we have professional service team to assist our clients . If you request, we can dispatch our engineer to your worksite to provide training for your staff. For the chassis, eg CAT chassis, our clients can enjoy global after service support.



Q: How about the warranty policy ?

A: Most of our products support 1 year or 2000 working hours warranty, please consult customer service for specific products



Q: Do you test all your goods before delivery?

A: Yes, we have strict quality inspection process before shipment, and the clients also authorize SGS to inspect our machine.

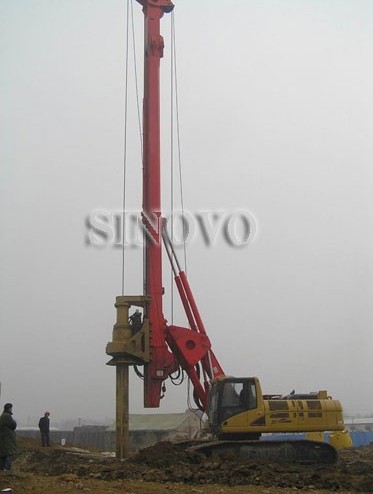

Sinovo High Operating Efficiency Crawler Hydraulic Rotary Drilling Rig CFA Pile Driver For Excavator 0
