Name: CFA Rotary Drilling Equipment TR220W with torque 220KNm for CFA bore pile
Brand: Beijing Sinovo International & Sinovo Heavy Industry Co.Ltd.
SKU: TR220W
Price: 78,225.00 USD
Availability: InStock

Detail Information

Application:	CFA Pile, Bored Pile, Foundation Project	Undercarriage:	Original CAT Base Or Doosan Base
Drill Accessories:	Kelly Bar, CFA Tools, DW Casing	Hydraulic System::	Rexroth And CAT
Core Components:	PLC, Engine, Pump	Warranty:	12month Or One Year
Highlight:	oil drilling equipment , drilling equipment

Product Description

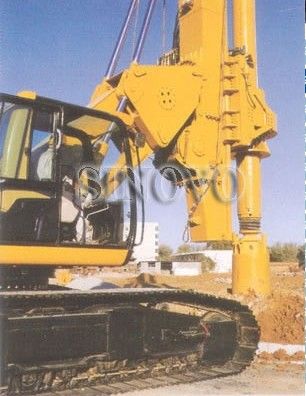

TR220W Rotary drilling rig mounted on original CAT base with pull down winch system is suited for:
1. Rotary drilling
2. Drilling cased boreholes(installation of casing by rotarydrive)
3. Drilling boreholes with long hollowstem angers(CAF system),with or without kelly extensions;

TR220W Rotary Drilling Rig is mainly used in the construction of civil andbridge engineering,which adoptsadvanced intelligent electronic controlsystem and load sensing type pilotcontrol hydraulic system, the wholemachine is safe and reliable.

TYPE	TR220W
Drilling torque max	220KNm/100KNm(CFA)
Drilling speed	6-27rpm
Max pull-down piston push	210KN
Max pull-down piston pull	210KN
Pull down piston stroke	No
Pull down winch stroke for CFA	13500mm
Mast side raking maximum	±5^o
Mast forward	5^o
The model of the engine	C9
Installed power	213Kw
Main Winch pulling force(the first layer)	200KN
Main rope diameter	28mm
Main winch pulling speed	78M/min
Auxiliary Winch pulling force(the first layer)	110KN
Auxiliary rope diameter	20mm
Auxiliary winch pulling speed	68M/min
Drilling depth maximum	60M
Drilling depth maximum for CFA	20M
Drilling diameter maximum	2000mm
Track shoe width	800mm
Overall width in drilling position	4300mm
Overall width in transport position	3000mm
Overall height in transport position	3475mm
Overall height in drilling position	21095mm
Overall height in drilling position CFA	20500mm
Traction force	510KN
Base type	CAT330D
Weight with standard drilling bar	65T

Place of Origin:	China
Brand Name:	SINOVO
Certification:	CE/GOST/ISO9001
Model Number:	TR220W

Minimum Order Quantity:	1 unit
Packaging Details:	Export Package
Delivery Time:	ON STOCK
Payment Terms:	T/T&L/C
